Lincoln Electric

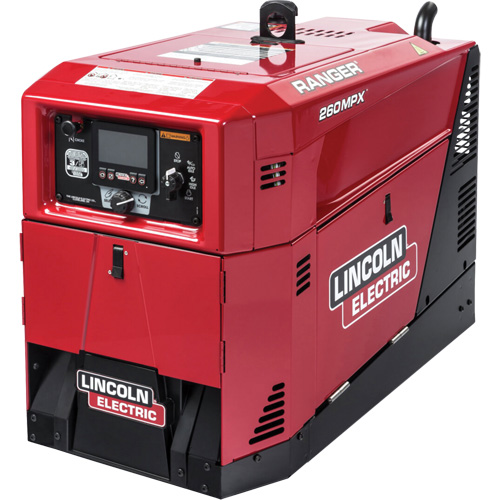

Ranger® 260MPX™ Engine Driven Welder (Kohler®)

Model: TTV724

Mfr. No.: K3458-1

  • Ranger® 260MPX Engine Driven Welder (Kohler®) CSL Industriel Inc.

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$15,130.22 / Each

0 In Stock - Montreal Warehouse

Ships in 3-6 days

Shipping times are based on information available at the time of order and are subject to change.

Dimensions

26"x 20"x 36 in

Net Weight

446 lbs (202 kg)

Machines Processes

Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G)

IEC Rating

231A / 29.2V / 100% @ 104°F (40°C)

Max Rating

260A / 26V / 100% @ 104°F (40°C)

Output Range By Mode

CC-Stick: 35 –260 Amps, Touch Start TIG: 20 – 250 Amps, CV-Wire: 14 – 28 Volts

Single Phase Auxiliary Output

9,500 Watts Continuous, 120/240V

Auxiliary Output Frequency

60 Hz

Receptacle Types

NEMA 5-20R, NEMA 6-50R, NEMA 14-50R

  • Premium welder/generator with excellent multi-process capability for stick, TIG, MIG while providing clean AC generator output
  • Smaller, lighter and quieter than other machines in its class
  • Up to 20% smaller meaning more space for additional tools
  • Up to 25% lighter for easy maneuverability around the jobsite
  • Up to 60% quieter for reduced noise level helps enhance safety and comfort
  • Easy-to-read digital screen with simple push-and-turn controls
  • Ready.Set.Weld® technology simplifies setup with recommended settings
  • Chopper Technology® feature helps improve arc control while the CrossLinc® remote technology allows for arc adjustments at the weld
  • Maintenance alerts keep you informed when service is needed
  • 9.5kW of clean AC generator power accommodates a variety of tools and equipment
  • Operate sensitive electronics, like laptops, without concern - this unit delivers clean generator power with 5% Total Harmonic Distortion
  • Kohler® OHV Command CH730 2-cylinder air-cooled gasoline engine
  • Run generator power and weld at the same time, without interruption
